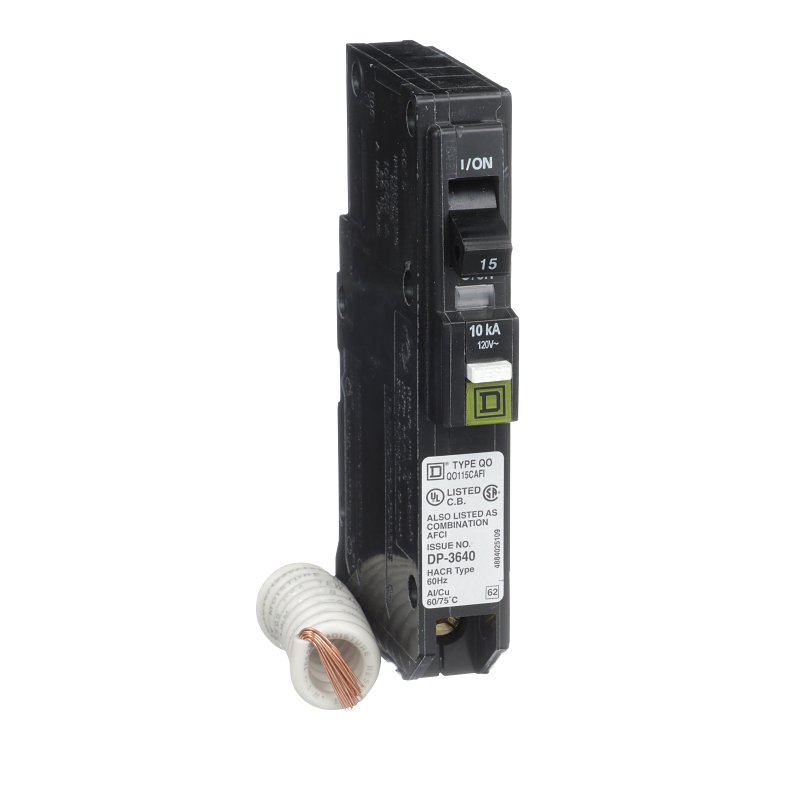

Square D QO QO115CAFIC Circuit Breaker, AFCI, 15 A, 1 -Pole, 120 V, Fixed Trip, Plug Mounting

Square D

Square D QO QO115CAFIC Circuit Breaker, AFCI, 15 A, 1 -Pole, 120 V, Fixed Trip, Plug Mounting

$67.99$67.99
Square D QO QO115CAFIC Circuit Breaker, AFCI, 15 A, 1 -Pole, 120 V, Fixed Trip, Plug Mounting
  • Current Rating: 15 A
  • Dimensions: 2-29/32 in L x 3/4 in W x 4-3/4 in H
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Phases: 1
  • Model #: QO115CAFIC
  • UPC #: 785901610441
  • SKU: 9085606

Your shopping list will be used for pickup in-store

Product Details

Combination CAFCI 3/4 in single-pole circuit breaker, designed for overload and over-current protection of an electrical system. Thermal-magnetic tripping mechanism. Designed to detect arcs that are caused by damaged, aged or improperly used wires or cords and to disconnect the power. Visi-Trip indicator to identify which circuit is out in the load center. With Time-Saver Diagnostics, advanced trip indication technology, identifying the type of fault that last occurred. 10kA interrupting rating. Uses one space per breaker. 120 VAC. UL listed. Carded.

Item Specifications

Current Rating15 A
Dimensions2-29/32 in L x 3/4 in W x 4-3/4 in H
Interrupt Rating10 kA
Mounting TypePlug
Number of Phases1
Number of Poles1
Terminal TypePressure Contact
Trip TypeFixed
TypeAFCI
Voltage Rating120 V
Wire Size12 to 8 14 to 8 AWG
MORE DETAILS:
  • Application: For QO load centers, NQ and NQOD panelboards/interiors and speed-D switchboard distribution panels
